Commel circuit breaker 10 A 1P B 6kA
In stock 12 db
2.45 €
(1.93 € + VAT) / db
(1.93 € + VAT) / db
Manufacturer:
Commel
Article number:
465-113
db
RAKTÁRON
12 db
A termék raktáron van, a kiszállítási idő 1 - 2 munkanap.
Bundle offers
Details

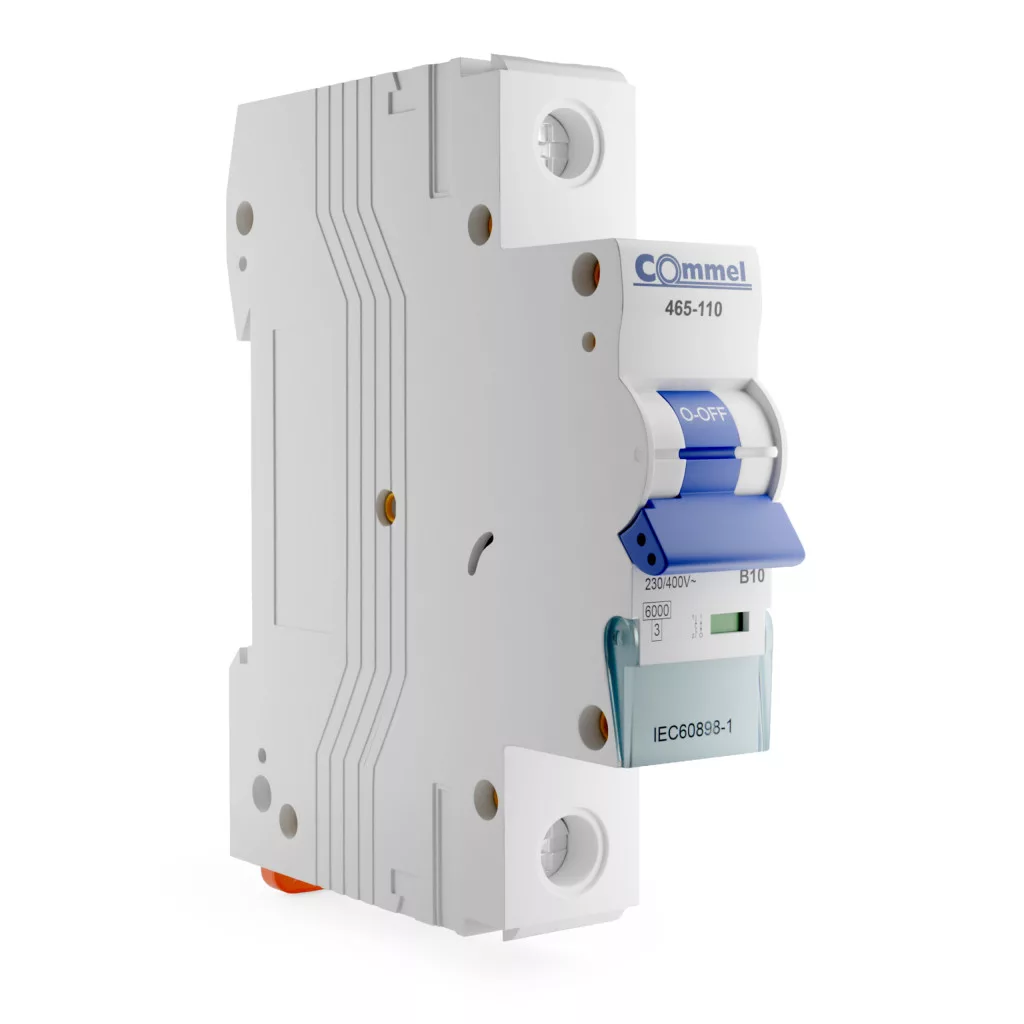

Commel's 1-pole miniature circuit breaker can be a good choice for protecting home circuits.
A miniature circuit breaker with a "B" tripping characteristic has a fast tripping without delay, so it immediately interrupts the electrical circuit in dangerous situations.
Typically suitable for protecting ohmic consumers.
- Can be arranged with a fork or pin phase busbar.
- Can be mounted on a 35 mm DIN rail
- ambient temperature -5° - 40°C
- connectable wire cross-section:
* 16 mm² flexible or 25 mm² rigid up to 25A
* 25 mm² flexible or 35 mm² rigid from 32A to 63A
- window for labeling,
- colored status indicator
A miniature circuit breaker with a "B" tripping characteristic has a fast tripping without delay, so it immediately interrupts the electrical circuit in dangerous situations.
Typically suitable for protecting ohmic consumers.
- Can be arranged with a fork or pin phase busbar.
- Can be mounted on a 35 mm DIN rail
- ambient temperature -5° - 40°C
- connectable wire cross-section:
* 16 mm² flexible or 25 mm² rigid up to 25A
* 25 mm² flexible or 35 mm² rigid from 32A to 63A
- window for labeling,
- colored status indicator
Data
Product type:
Megszakító
Color:
white
IP protection:
IP20
EAN:
3856024401753
Breaking capacity:
6000A
Rated current:
13A
Poles:
1
tripping characteristic:
B
Warranty (years):
1
Weight:
104 g/db
