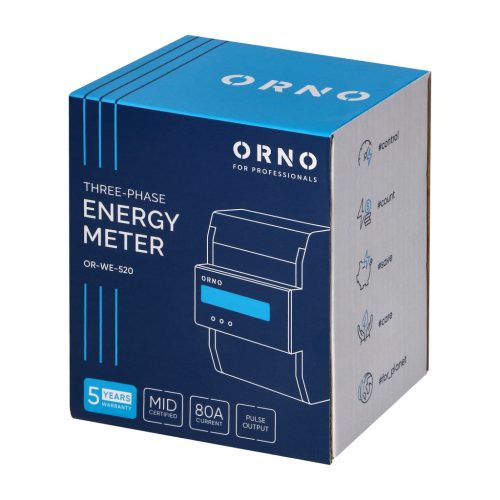

Orno three-phase digital consumption meter rail-mounted 80A
In stock 5 db
62.42 €
(49.15 € + VAT) / db
(49.15 € + VAT) / db
db
RAKTÁRON
5 db
A termék raktáron van, a kiszállítási idő 1 - 2 munkanap.
Bundle offers
Details
Three-phase, four-wire energy meter with LCD display, for DIN rail mounting. Used to monitor electricity consumption in a three-phase network.
A special electronic system displays pulses in a quantity proportional to the current flowing and the voltage applied to each phase, which roughly corresponds to the current consumed in that phase.
The power consumption of the phase is indicated by the flashing LED and its value is displayed on the LCD display.
- Material: plastic
- Size: 76 x 116.5 x 65 mm
- Device for display in kWh
- Power supply: 3 x 230V / 400V, 50 / 60Hz
- Base current: 5A
- Maximum current: 80A
- Min. current: 0.25A
- Pulse frequency: 800 imp/kWh
- Measurement accuracy class: B
- IP protection: 51
- MID certificate 2014/32/EU
A special electronic system displays pulses in a quantity proportional to the current flowing and the voltage applied to each phase, which roughly corresponds to the current consumed in that phase.
The power consumption of the phase is indicated by the flashing LED and its value is displayed on the LCD display.
- Material: plastic
- Size: 76 x 116.5 x 65 mm
- Device for display in kWh
- Power supply: 3 x 230V / 400V, 50 / 60Hz
- Base current: 5A
- Maximum current: 80A
- Min. current: 0.25A
- Pulse frequency: 800 imp/kWh
- Measurement accuracy class: B
- IP protection: 51
- MID certificate 2014/32/EU
Data
Product type:
Fogyasztásmérő
IP protection:
IP20
EAN:
5900378653011
Warranty (years):
1
Weight:
200 g/db
